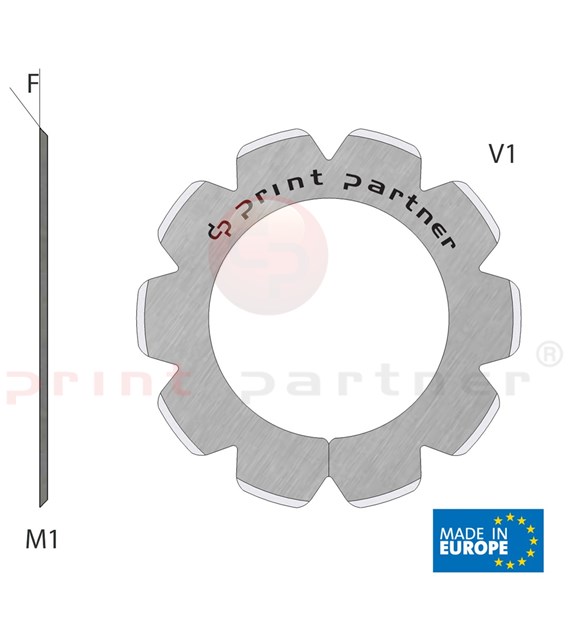

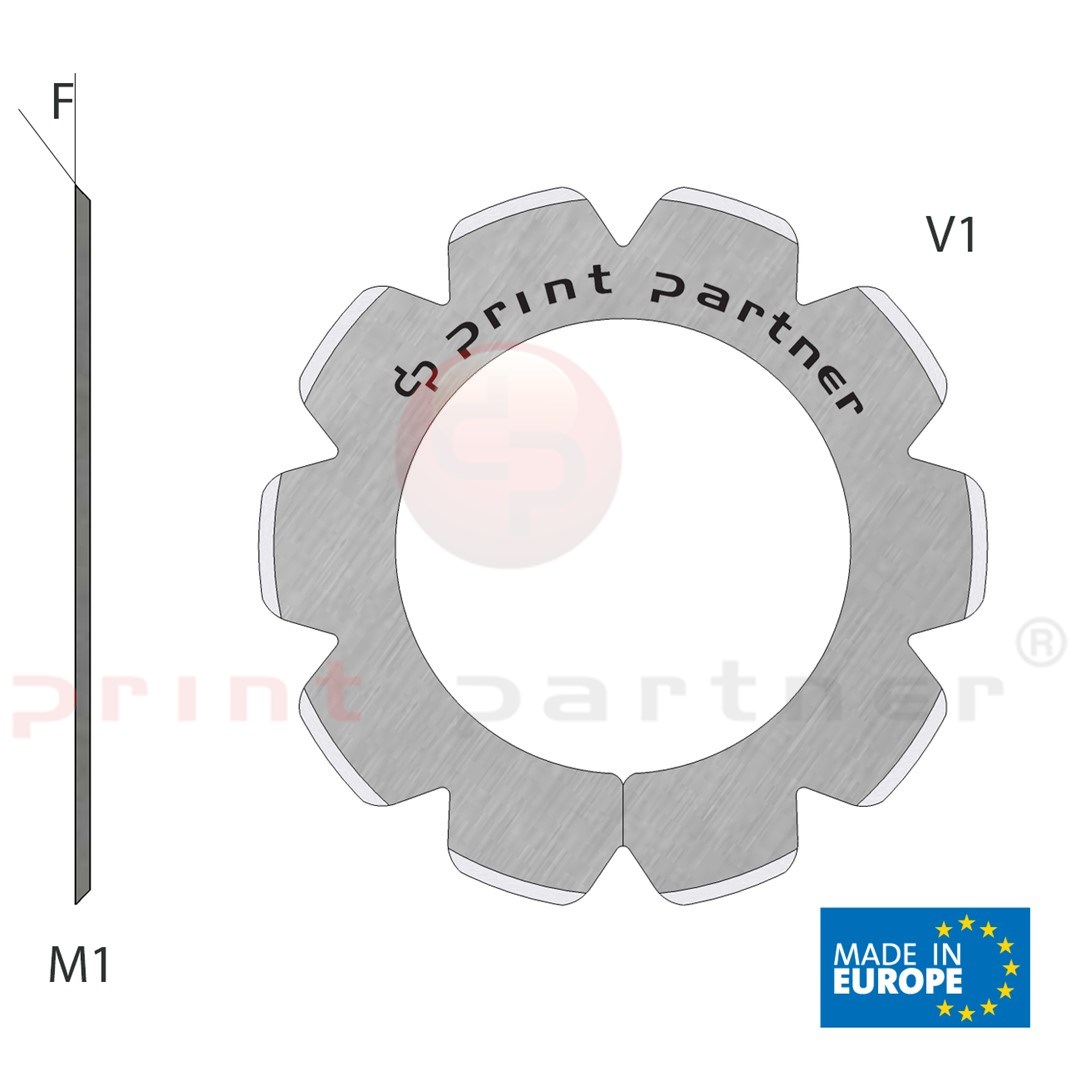

Perforating blade 30x48x0,5mm - Z10

Categories: TO THE BINDERIES \ Replacement Parts \ Cutting, Creasing and Perforating Knives

Symbol: HB/200-766-01-00

Other part numbers: ZD.200-766-01-00 | 200-766-01-00 | HB/30X48X0,5Z10L9V1

Designed for machines Stahl. Heidelberg Stahlfolder

Dimensions: 30x48x0,5mm

Weight 0.01kg

FEATURES

Designed for machines:

Stahl. Heidelberg Stahlfolder

Outside diameter (OD):

48 mm

Inside diameter (ID):

30 mm

Thickness (D):

0.5 mm

Number of teeth (Z):

Approximate slot length (L):

9 mm

Approximate distance between slots (S):

6 mm

Shape of teeth (V):

Blade shape (M):

True cutting angle (F):

Type:

Perforation

Other parts numbers:

ZD.200-766-01-00 200-766-01-00 HB/30X48X0.5Z10L9V1

Weight:

0.0100
